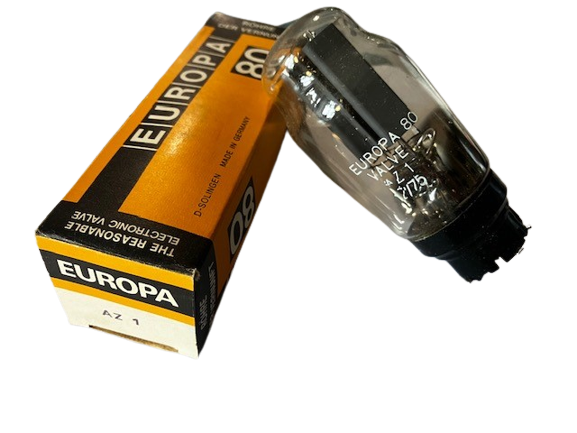

Tube valve Europa 80 AZ1

Country:Europe
Brand:
Common type Europe tube/semicond.
Tube type: Full-Wave Vacuum Rectifier Power-supply
Identical to AZ1 = 140NG = TAZ1 = 4VGL100 = TZ1 = WE54 = RAZ1 = 4R3_Ultron = WE55 = MAZ1 = VG5007 = VAZ1
Similar Tubes
Normally replaceable-slightly different:
3118_OSW ; 4GG4 ; 4Z1 ; DE6_Oxytron ; OSW3118 ; T21_Dario
Other base:
1805 ; AZ11 ; AZ31 ; RGN1064
Other base and data slightly different:
AZ21
Differences not known by us:
AZ1N
Multiple differences or of other kind:
4Z60a
First year 1935 Tube leaflet collection E.Erb *Analysis by original leaflets
First Source (s)
Mar.1935 : Philips Bulletin
15.Jul.1935 : Funk
Predecessor Tubes RGN1064 1805
Successor Tubes AZ11 EZ3 AZ41 1883 1882 AZ21 V41_Mazda-F AZ21_9pin
Base Europe side contact P8A (Au P, 8SC) (Codex=So)
Was used by Radio/TV-reception etc.
Filament Vf 4 Volts / If 1.1 Ampere / Direct
Tube prices 100 Tube prices (visible for members only)
Information source Taschenbuch zum Röhren-Codex 1948/49

Tube testé au lampemètre de service Centrad modèle 751

(info internet)
