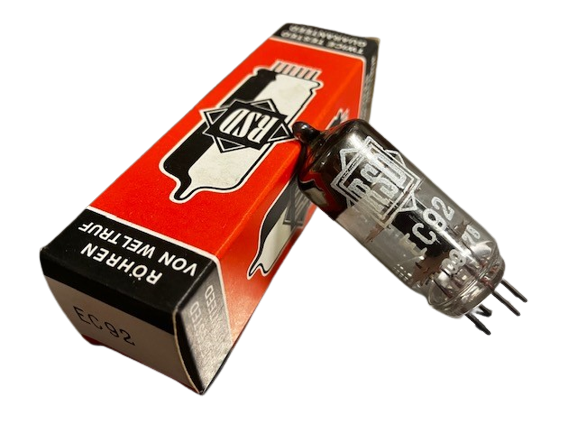

Tube valve RSD EC92
Tube valve RSD EC92
Country:Europe
Brand: Common type Europe tube/semicond.
Developer: Common type Europe tube/semicond.
Tube type: Triode, vacuum VHF
Identical to EC92 = 6AB4
Similar Tubes
Other class quality (otherwise equal):
6664
Heater different:
PC92 ; UC92
First year 1952 Tube leaflet collection E.Erb Analysis by original leaflets
First Source (s)
Apr.1952 : Telefunken-Röhrenmitteilungen Nr. 5608-12
Base Miniatur-7-Pin-Base B7G, USA 1940
Was used by Radio/TV-reception etc.
Filament Vf 6.3 Volts / If 0.15 Ampere / Indirect / Specified voltage AND current AC/DC
Description
= 1/2 ECC81 / 12AT7
Text in other languages (may differ)
Dimensions (WHD)
incl. pins / tip 19 x 55 x mm / 0.75 x 2.17 x inch
Weight 10 g / 0.35 oz
Tube testé au lampemètre de service Centrad modèle 751
(info internet)
